Chamfer Technology And 25um Minimum Hole Copper Printed Circuit Board To Follow Customer Specification
  • Chamfer Technology And 25um Minimum Hole Copper Printed Circuit Board To Follow Customer Specification

Chamfer Technology And 25um Minimum Hole Copper Printed Circuit Board To Follow Customer Specification

ブランド名 Customized
証明 ISO9001,TS16949,ISO45001,ISO14001
プロダクト細部
製品タイプ:
銅PCB板
最低の穴の銅:
25um
アプリケーション:
エレクトロニクスデバイス
表面仕上げ:
浸漬ゴールド
分線幅/間隔:
0.15mm/0.15mm
SolderMask:
テクノロジー:
シャマー 穴詰める溶接マスク
銅の厚さ:
2/2/2/2OZ
ハイライト:

Chamfer Technology Copper PCB

,

25um Hole Copper Circuit Board

,

Custom Specification Printed Circuit Board

支払及び船積みの言葉
最小注文数量
1 パネル
価格
交渉可能
パッケージの詳細
真空パッケージ
受渡し時間
1~2週間柔軟に対応可能
支払条件
T/T
製品の説明

Product Description:

The Copper PCB is a high-quality printed circuit board (PCB) product designed to meet the demanding requirements of modern electronics manufacturing. With a minimum line width and spacing of 0.15mm/0.15mm, this copper PCB board offers precise and accurate circuitry for your electronic devices.

When it comes to thickness, the Copper PCB offers a wide range from 1.0mm to 3.0mm, allowing you to choose the best fit for your specific application. This versatility makes it suitable for various electronic devices and projects, from small gadgets to industrial equipment.

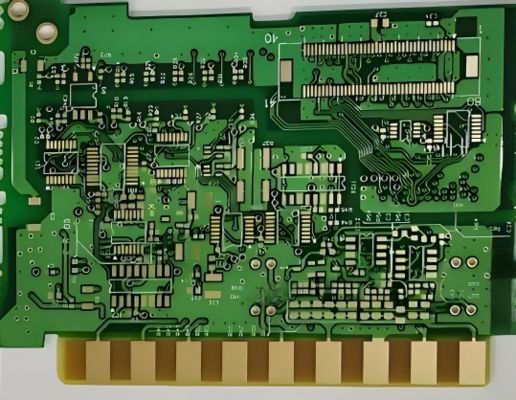

With a surface finishing of immersion gold,  the Copper PCB ensures excellent solderability and corrosion resistance. This surface finish enhances the durability and reliability of the PCB, making it ideal for long-term use in a wide range of electronic applications. And gold fingers (also known as edge connectors) are vital components across numerous industries. The gold plating is used for its superior conductivity, corrosion resistance, and high wear resistance, making it ideal for connections that must be inserted and removed frequently or require highly reliable, long-term contact.

Do you have a specific project in mind that requires gold fingers, or would you like to know more about the different types of gold plating used for edge connectors? Please contact us.

Technical Parameters:

Product 4 layer copper PCB board
Copper thickness 2/2/2/2OZ
Impedance Control YES
Thickness 1.6mm
Min. Line Width/Spacing 0.15mm/0.15mm
Minimum Hole Copper 25um
Application Electronics Device
Soldermask Green
Technology Chamfer, Hole Plug Soldermask
Surface Finish Immersion gold
