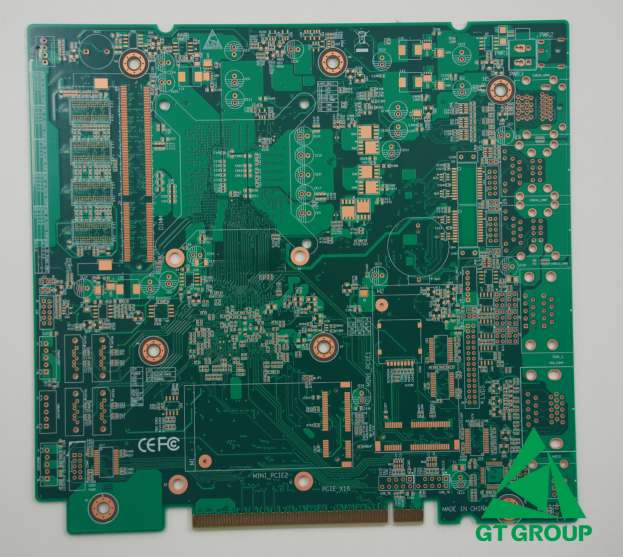

10 Layer Rigid Printed Circuit Board With Tg150 FR4 OSP+ Golden Finger Technology
  • 10 Layer Rigid Printed Circuit Board With Tg150 FR4 OSP+ Golden Finger Technology

10 Layer Rigid Printed Circuit Board With Tg150 FR4 OSP+ Golden Finger Technology

証明 ISO9001, TS16949
プロダクト細部
アイテム:
カスタム回路基板10レイヤー
銅の太い:
レイヤーごとに1オンス
ボードの厚さ:
FR4 TG150 1.6mm
PCBAサービス:
SMD SMT DIP コンポーネント組成
テクノロジー:
Impendace Control、Golder Finger+ Bevel
最低ライン スペース:
3ミリ (0.075mm)
最小穴サイズ:
0.2mm
最小穴のサイズ:
0.2mm
支払及び船積みの言葉
最小注文数量
1 パネル
価格
交渉可能
パッケージの詳細
真空パッケージ
受渡し時間
1〜2週間
支払条件
T/T
製品の説明

Product Description:

A 10-layer, 1 oz rigid PCB is a high-performance circuit board with 10 conductive copper layers and a standard copper thickness of 1 ounce on each layer. This type of board is used in advanced electronics where high density, reliability, and signal integrity are essential.

The term "10-layer" refers to the number of conductive copper layers. These layers are stacked and separated by insulating materials (dielectrics) like FR-4 (fiberglass-epoxy laminate). The stack-up of these layers is carefully designed to optimize performance. A typical configuration might include:
Signal Layers: These layers carry data and signals between components. With 10 layers, designers have ample space to route complex circuits, reducing signal congestion and allowing for high-density component placement.
Power and Ground Planes: Dedicated layers for power and ground provide a stable and low-impedance path for current, which is crucial for high-speed digital circuits. They also act as a shield to minimize electromagnetic interference (EMI) and help with heat dissipation.


Technical Parameters:

Product item 10 layer rigid PCB board
Board Thickness FR4 Tg150 1.6mm
Processing Technology Impendace control, golden finger
Solder Mask Color Geen soldermask+ white silkscreen
Standard Testing IPC Class 2
Minimum Hole Size 0.2mm
Pcba Service SMD SMT DIP Component Assembly
Minimum Line Space 3mil (0.075mm)
Min Hole Size 0.2MM



Support and Services:

Our Product Technical Support and Services for the Heavy Copper PCB include:

- Expert consultation on design and manufacturing considerations

- Assistance with material selection and specifications

- Guidance on meeting industry standards and regulations

- Troubleshooting and resolution of technical issues

- Customization options to meet specific requirements
